 Link Technologies - LinkSOFT Documentation
Help > Point of Sale > Maintenance > Configuration >
Integration

Integration is to configure details for a Forecourt and Link POS Integration setup.

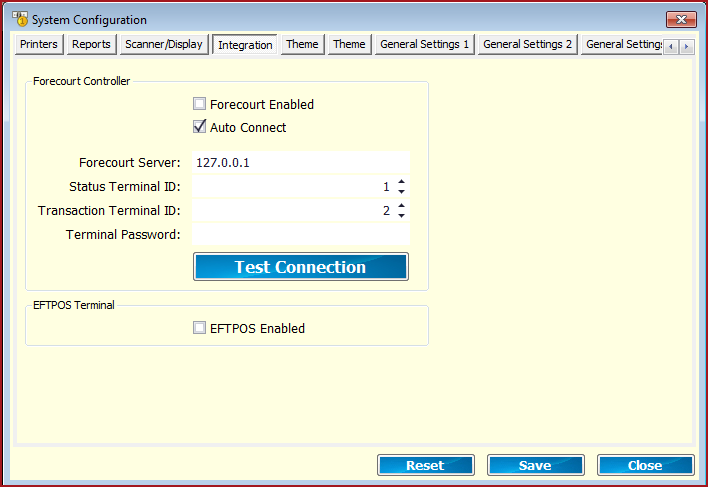

Figure 1: Integration Configuration.



Table 1: Field for Integration Configurations.

Fields

Description

Forecourt Enabled

Check this box if you want the system to integrate with Enabler card.

Auto Connect

Detailed description for the Role Code

Forecourt Server

Check this box if you want the system to atomically connect to the Enabler card.

Status Terminal ID

Enter the Terminal ID for viewing the Enabler Status screen.

Transaction Terminal ID

Enter the Terminal ID for processing fuel transactions in POS.

Terminal  Password Enter the Terminal Password to access Status and Transaction terminals.
Test Connection

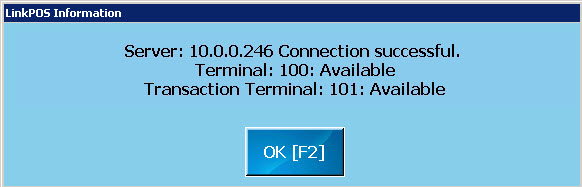

Click the button to test connection to the server and terminals. A successful connection will display this message below:

EFTPOS Enabled

Check this box to enable EFTPOS.
